Description

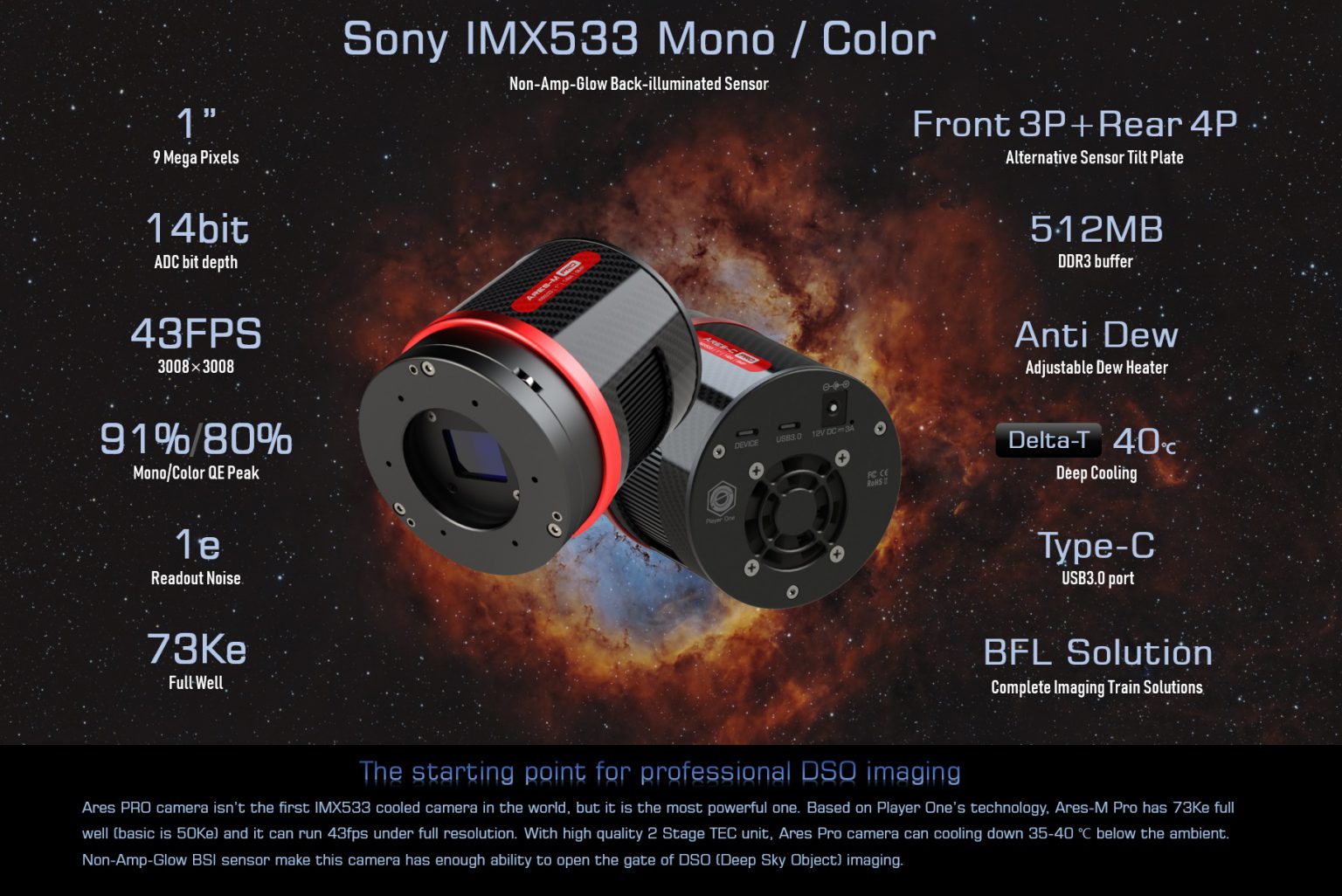

| Sensor | New SONY IMX533 1″ CMOS (mono) |
|---|---|
| Diagonal | 16mm |
| Total Pixels | 9 Mega Pixels |
| Max Resolution | 3008×3008 |
| Pixel Size | 3.76μm |

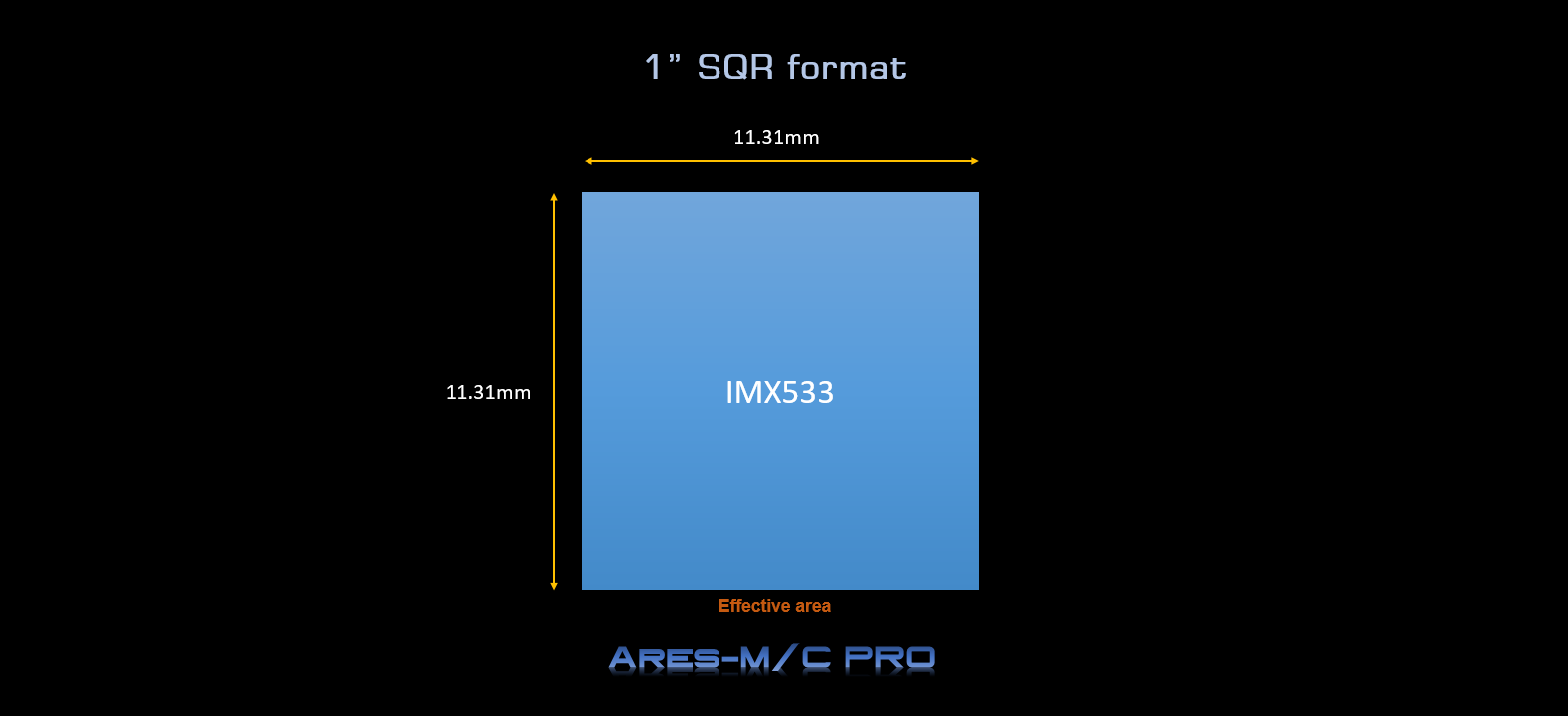

| Chip Size | 11.31mm×11.31mm |

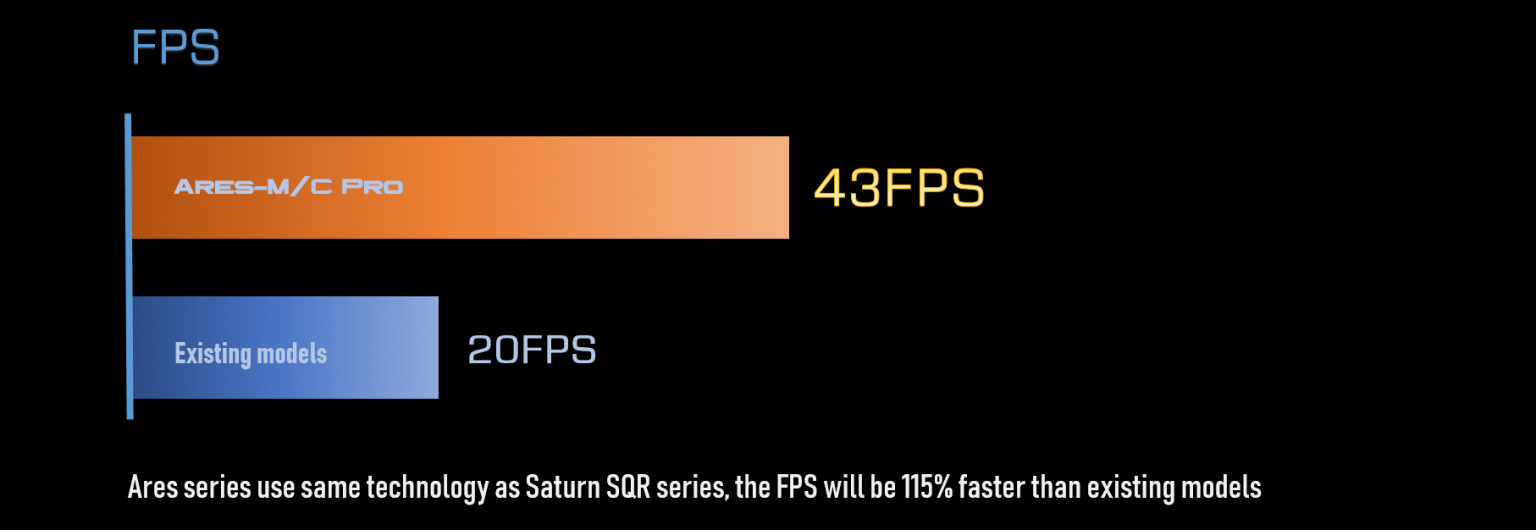

| Frame Rate | 43FPS（10bit） |
| Shutter | Rolling shutter |
| Exposure Range | 32μs-2000s |
| Readout Noise | 4.46-1e |

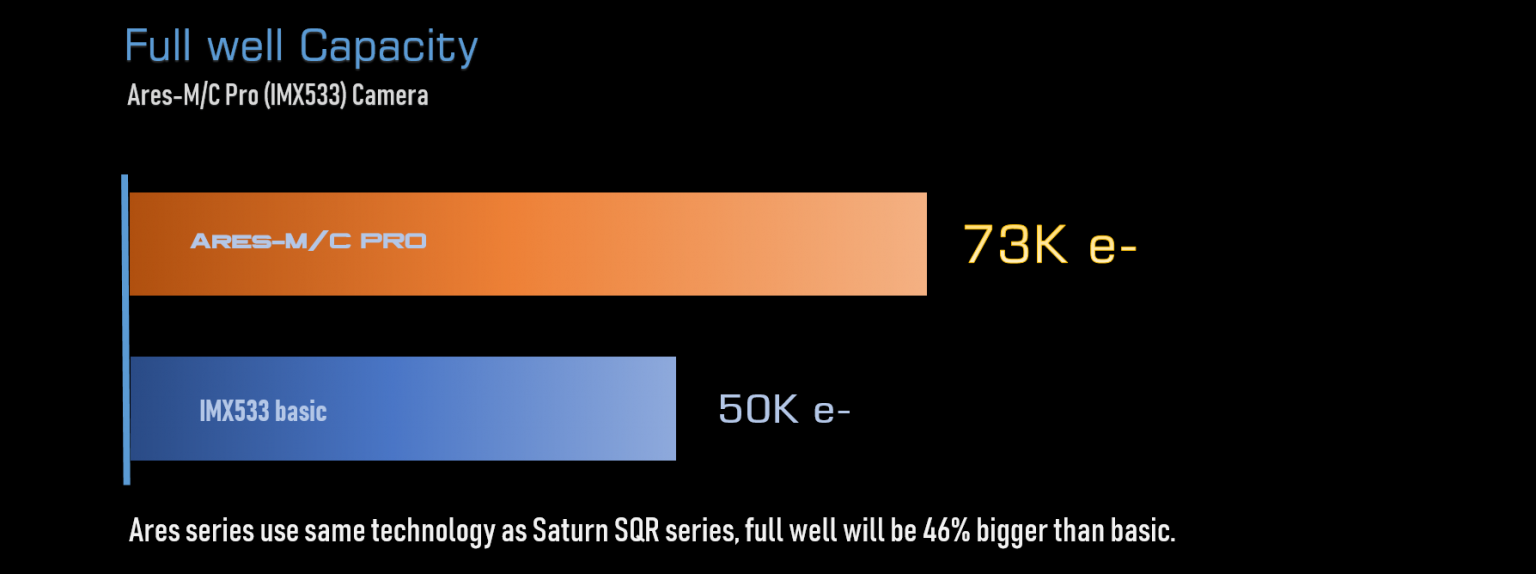

| Full Well | 73k e |

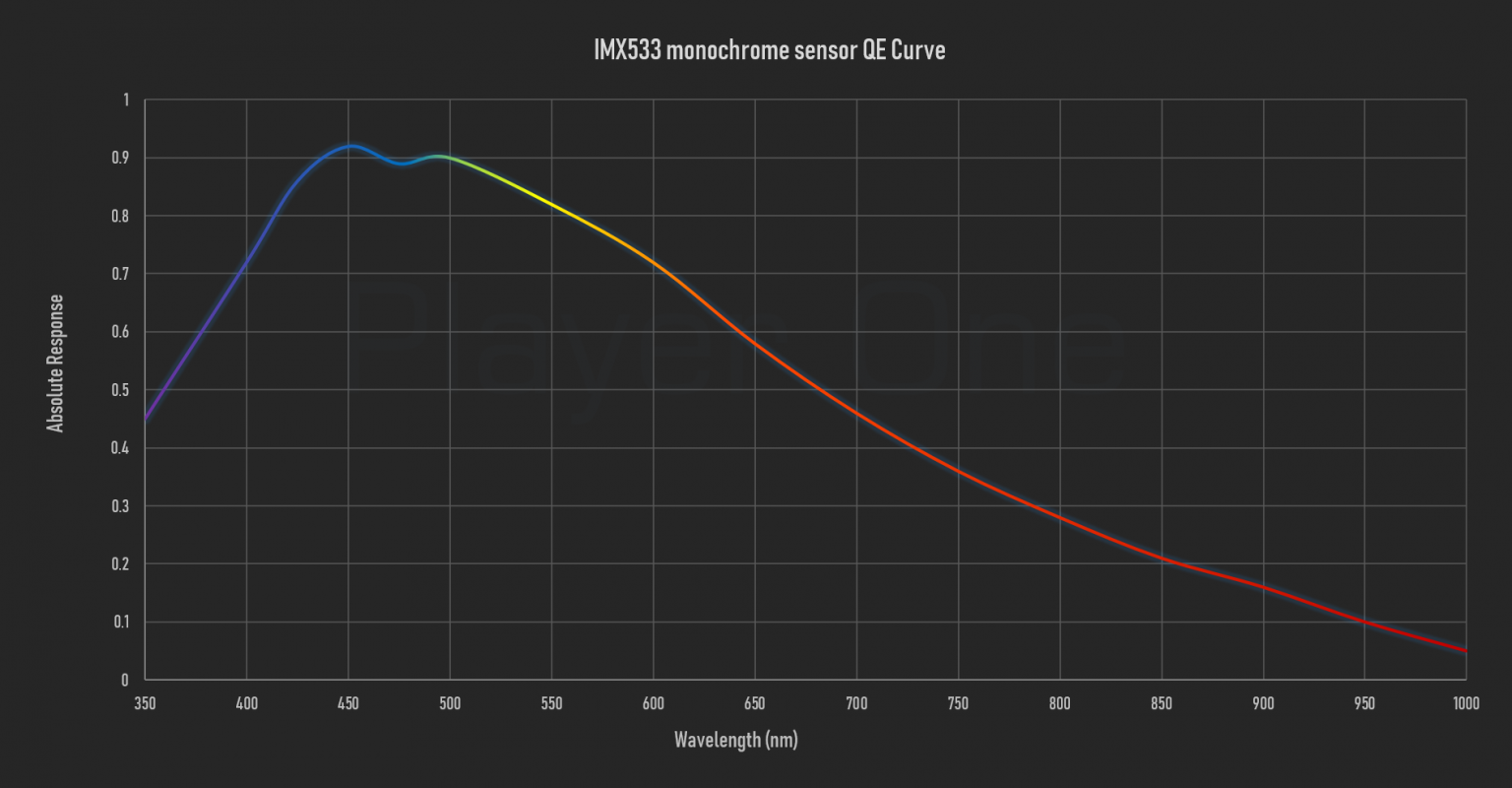

| QE Peak | ≈91% |
| ADC | 14 bit |

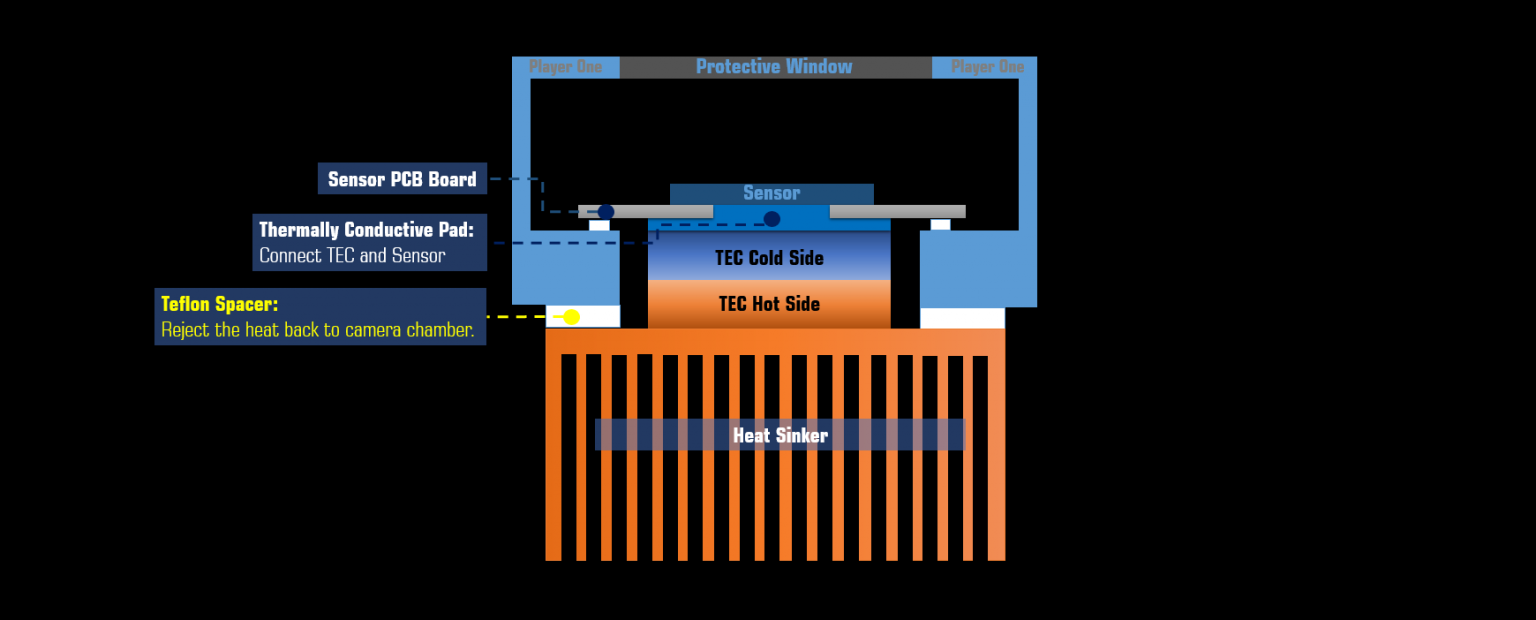

| Cooling Syetem | High quality 2 stage TEC cooling Componet |
| Cooler Power Consumption | 12V – 3A Max |
| Delta T | 35°C-40°C (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port | USB3.0/USB2.0 |
| Adapter | 1.25″ / M42X0.75 |
| Back Focal Length | 17.5mm |
| Diameter | 78mm |

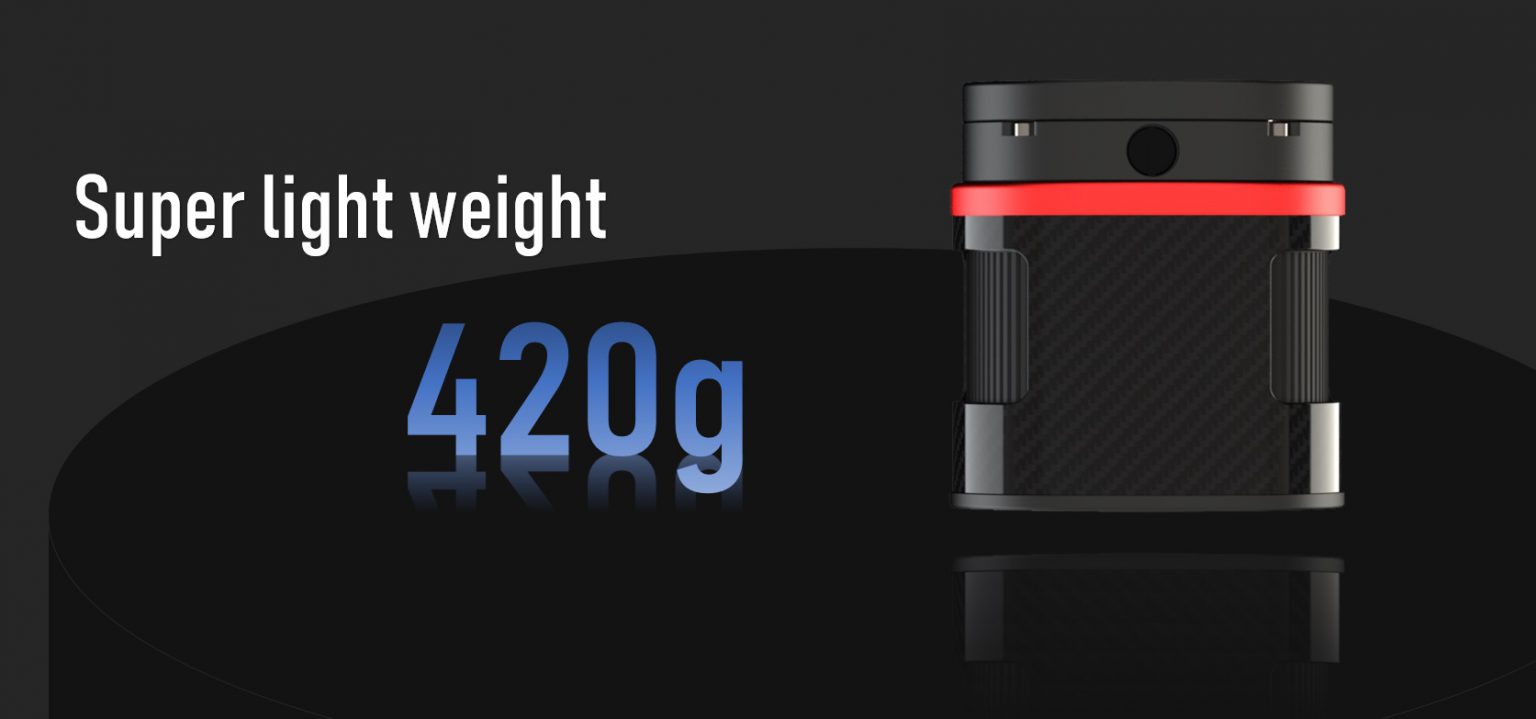

| Weight | 420g |
| Resolution and FPS | Under USB3.0 mode Resolution 10bit ADC 14bit ADC 3008×3008 43FPS 19.5FPS 2560×1440 95FPS 40FPS 1920×1080 125FPS 53FPS 1280×720 185FPS 79FPS 800×600 220FPS 93FPS 640×480 272FPS 115FPS More resolution options could be setup in capture softewares! |
| Lightweight Mono Option | Camera, Camera+Phoenix Wheel8x1.25+FHD-OAG MINI |
