Description

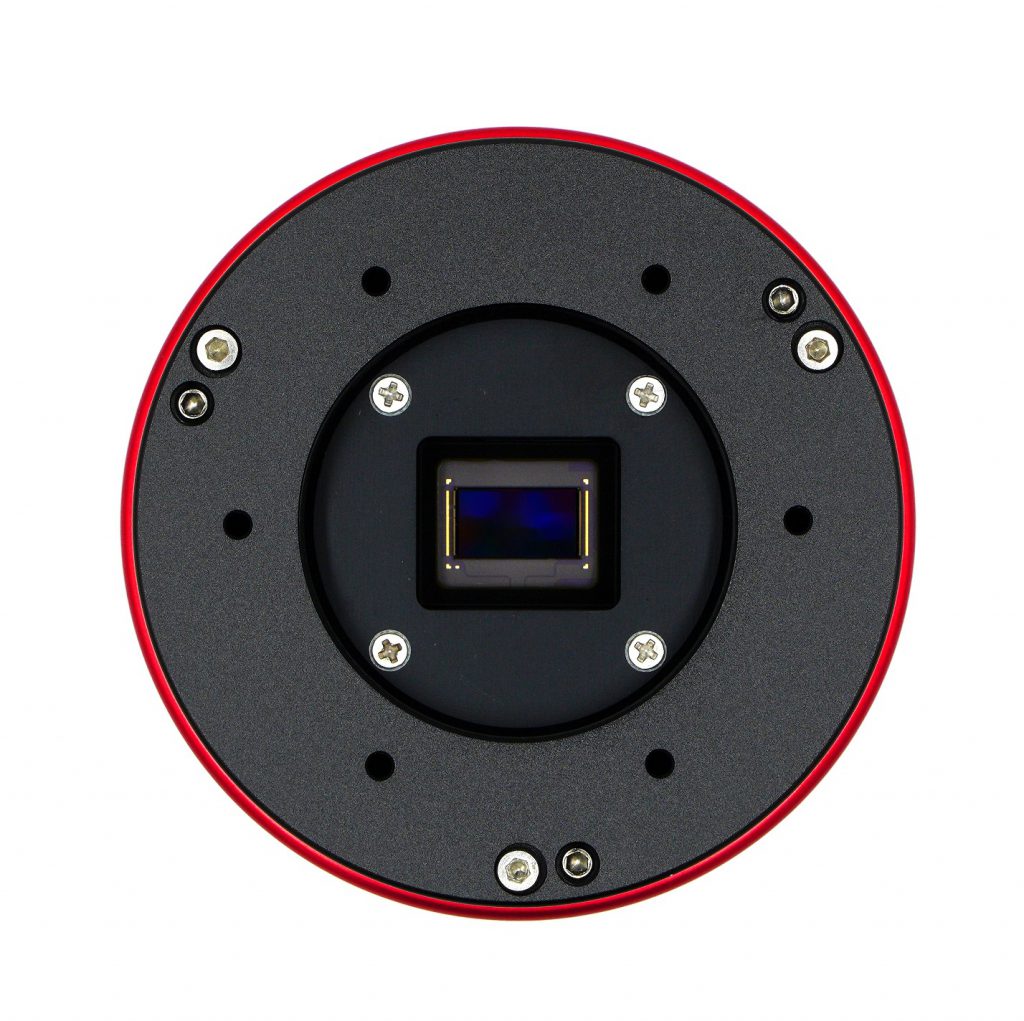

| Sensor | New SONY IMX585 1/1.2″ CMOS (Mono) |
|---|---|
| Diagonal | 12.85mm |
| Total Pixels | 8.3 Mega Pixels |
| Max Resolution | 3856×2180 |
| Pixel Size | 2.9μm |
| Chip Size | 11.2mm×6.3mm |
| Frame Rate | 47FPS（10bit） |
| Shutter | Rolling shutter |
| Exposure Range | 32μs-2000s |
| Readout Noise | 6.5-0.7e |
| Full Well | 47k e |
| QE Peak | ≈91% |
| ADC | 12 bit |
| Cooling System | High quality 2 stage TEC cooling Component |
| Cooler Power Consumption | 12V – 3A Max |
| Delta T | 35°C-40°C (below ambient) |
| Working Temperature and Humidity | Working Temperature: -10°C—60°C Working Relative Humidity: 0%—80% |
| Protective Window | D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Data Port | USB3.0/USB2.0 |

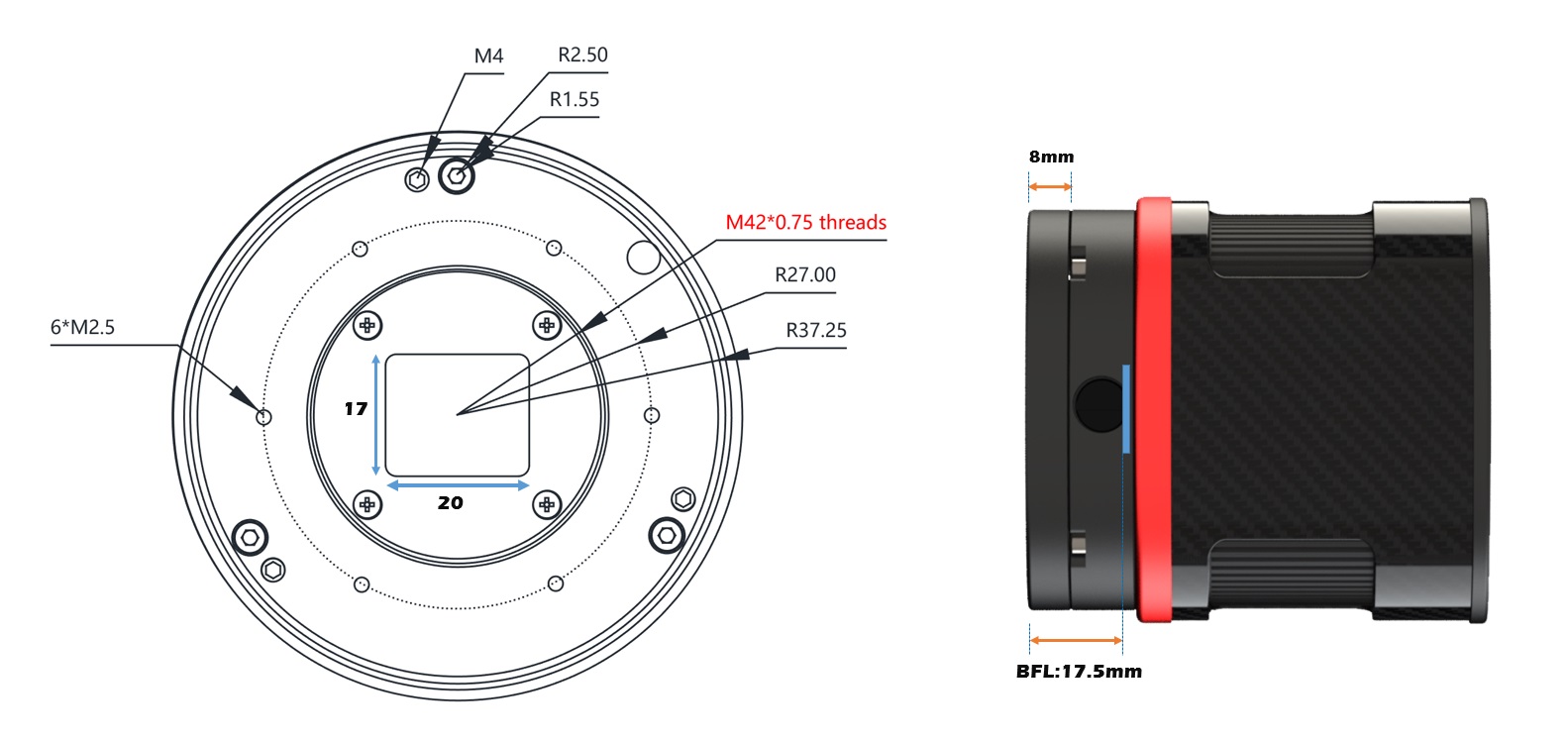

| Adapter | 1.25″ / M42X0.75 |
| Back Focal Length | 17.5mm |
| Diameter | 78mm |
| Weight | 420g |
| Resolution and FPS | FPS Under USB3.0 mode Resolution 10bit ADC 3856×2180 46FPS 3840×2160 47FPS 1920×1080 187FPS More resolution options could be setup in capture softewares! |
