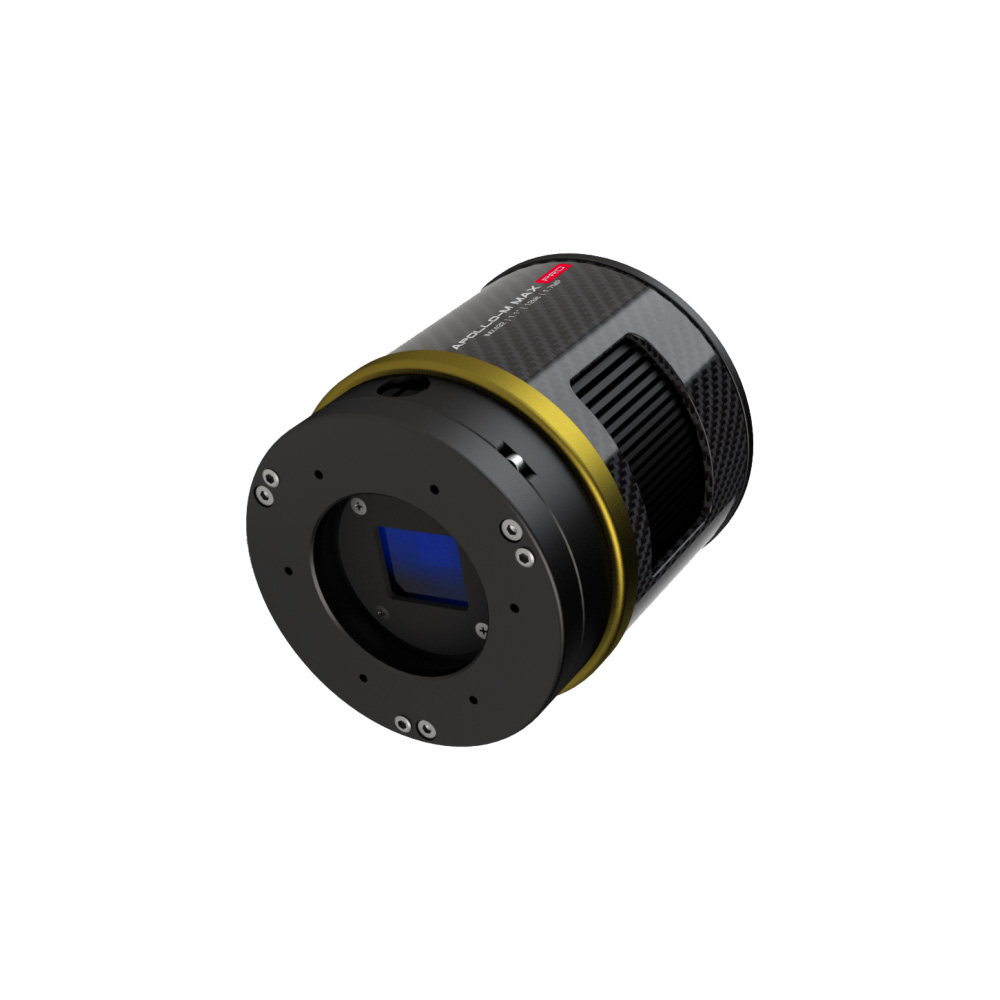

Apollo-M Max Pro


SKU: N/A Categories: ,


Cooled version of Apollo-M Max

Sensor New SONY IMX432 1.1″ CMOS (mono)
Diagonal 17.5mm
Total Pixels 1.7 Mega Pixels
Max Resolution 1608×1104
Pixel Size 9μm
Chip Size 14.5mm×9.9mm
Frame Rate 126FPS(12bit)
Shutter Global shutter
Exposure Range 32μs-2000s
Readout Noise 22.9e~2.6e

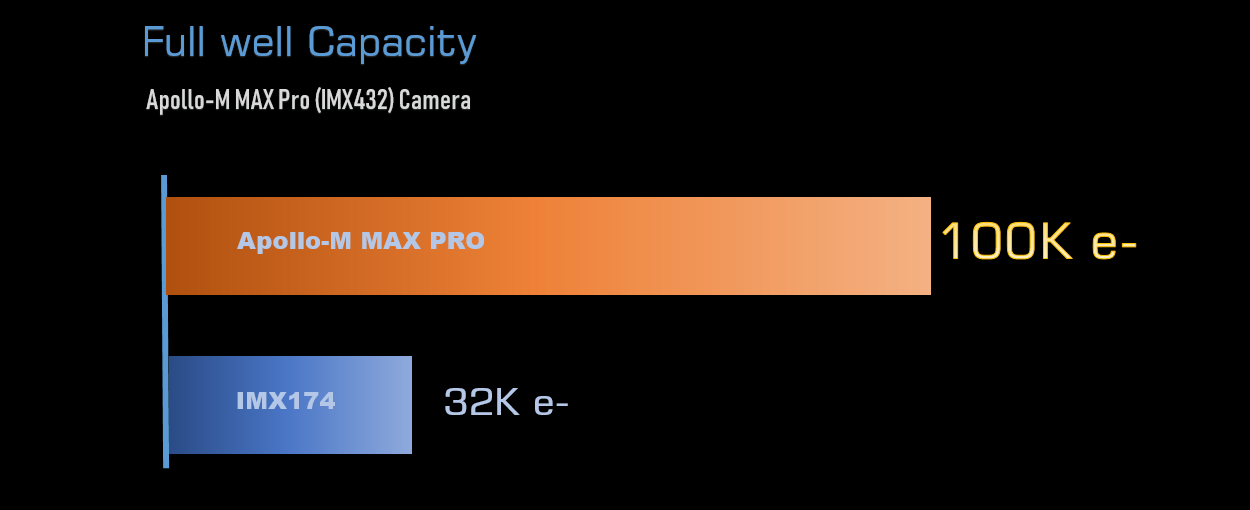

Full Well 100k e
QE Peak ≈79%
ADC 12 bit
Cooling Syetem High quality 2 stage TEC cooling Componet
Cooler Power Consumption 12V – 3A Max
Delta T 35°C-40°C (below ambient)
Working Temperature and Humidity Working Temperature: -10°C—60°C
Working Relative Humidity: 0%—80%
Protective Window D32*2MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating

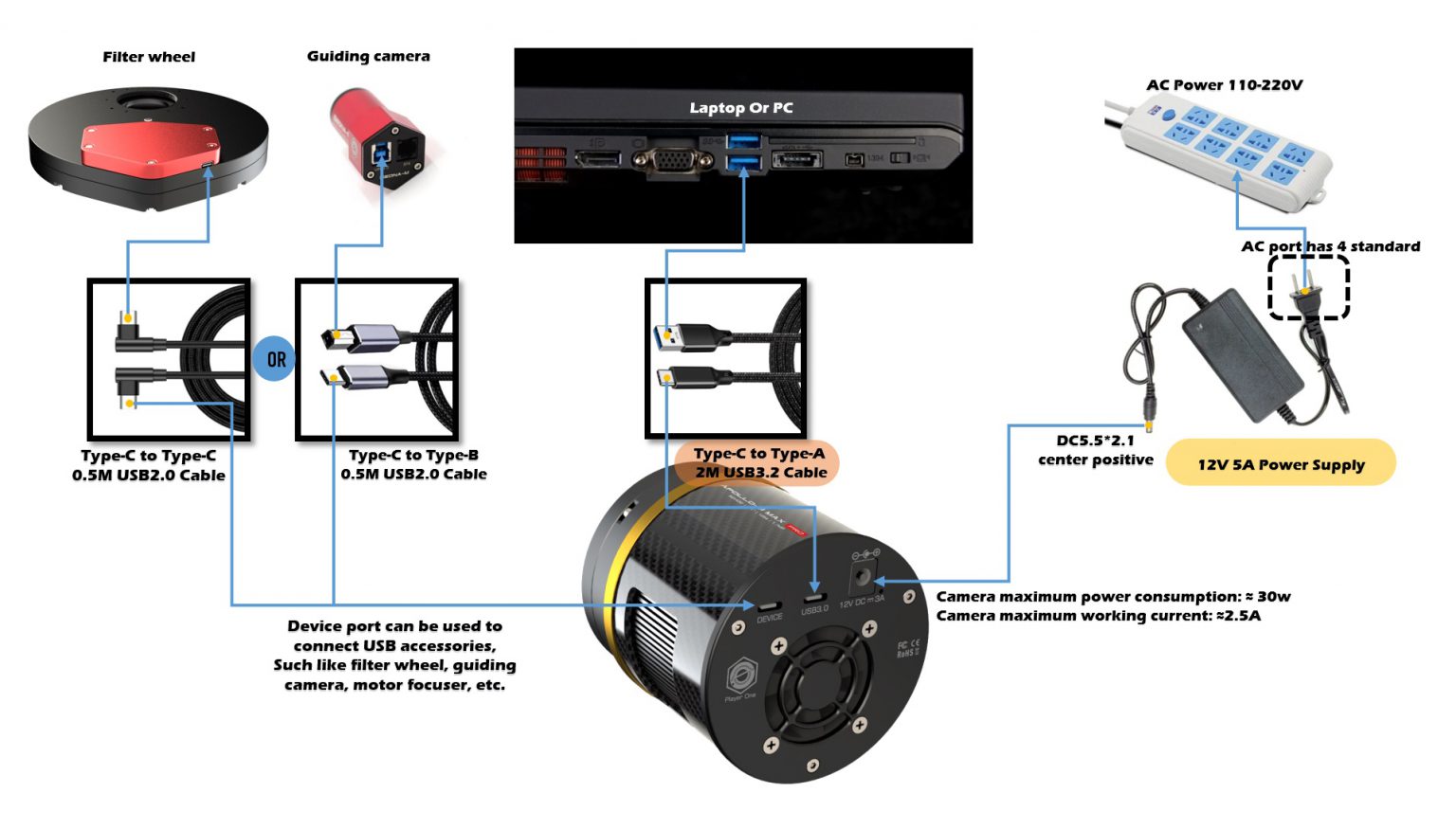

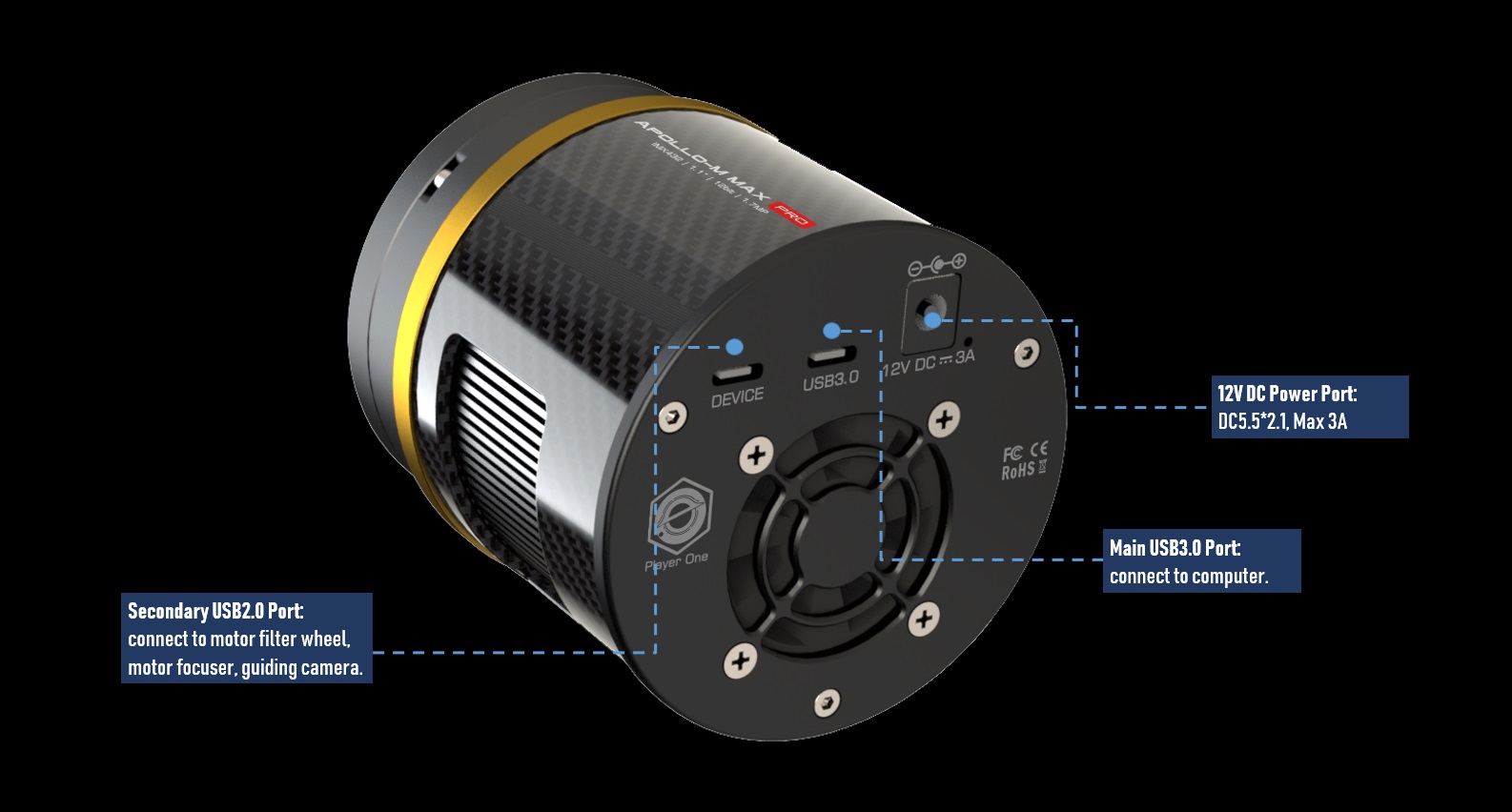

Data Port USB3.0/USB2.0
Adapter 1.25″ / M42X0.75
Back Focal Length 17.5mm
Diameter 78mm
Weight 420g
Resolution and FPS Under USB3.0 mode
Resolution 12bit ADC
1608×1104 126FPS
More resolution options could be setup in capture softewares!

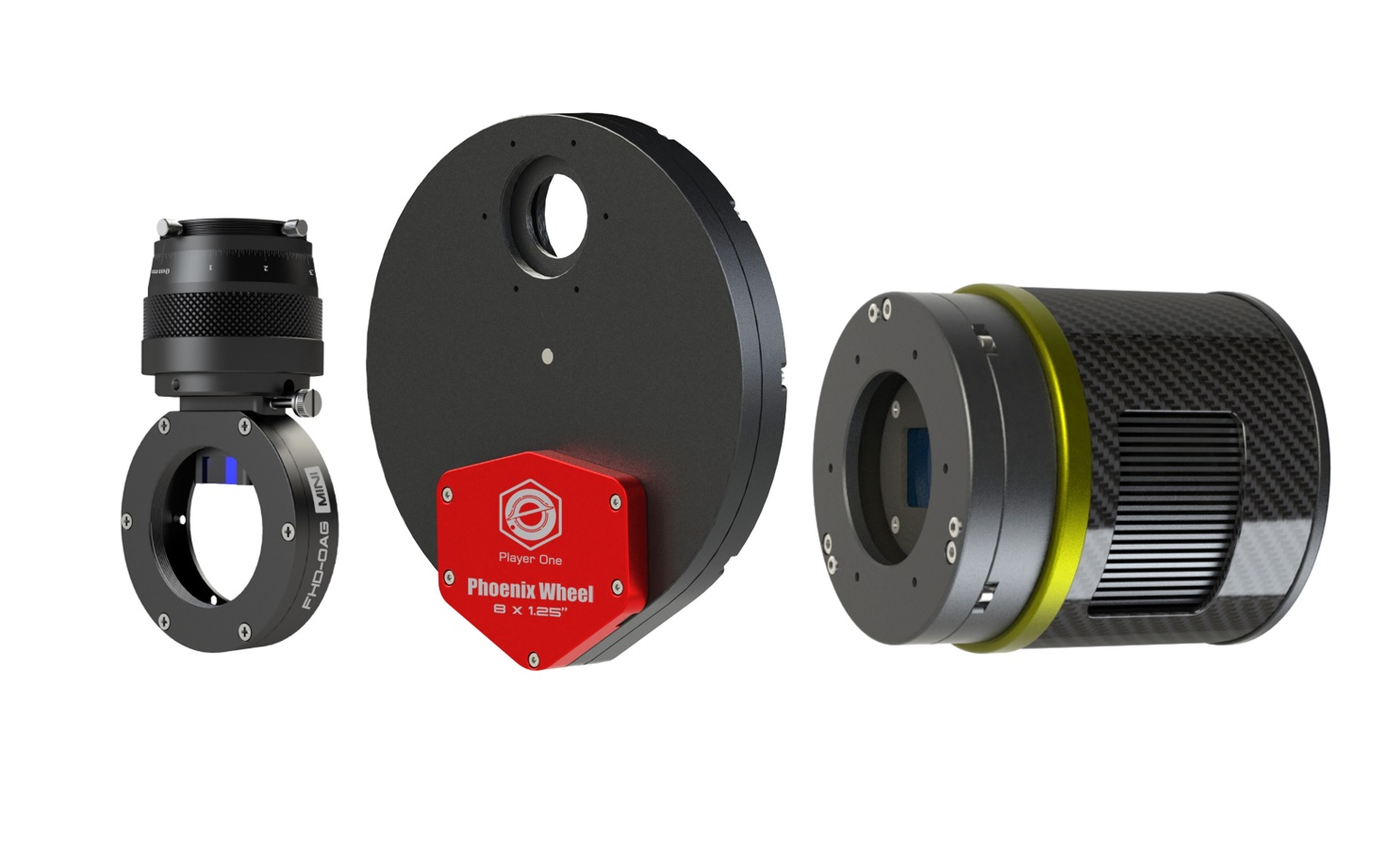

Lightweight Mono Option Camera, Camera+Phoenix Wheel8x1.25+FHD-OAG MINI

Additional information


Camera only, Camera+Phoenix8x1.25+FHD-OAG MINI
