Description

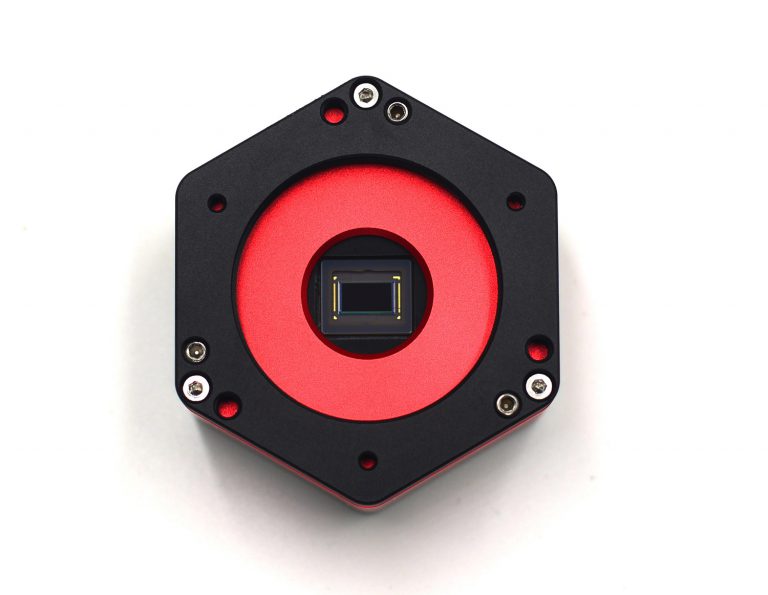

| Sensor | SONY IMX664 1/1.8″ CMOS (color) |
|---|---|
| Diagonal | 9mm |
| Total Pixels | 4.2 Mega Pixels |
| Max Resolution | 2704×1540 |
| Pixel Size | 2.9μm |
| Chip Size | 7.8mm×4.5mm |
| Frame Rate | 136FPS（10bit） |
| Bayer Matrix | RGGB |
| Shutter | Rolling shutter |
| Exposure Range | 32μs-2000s |
| Readout Noise | 6.1e~0.67e |

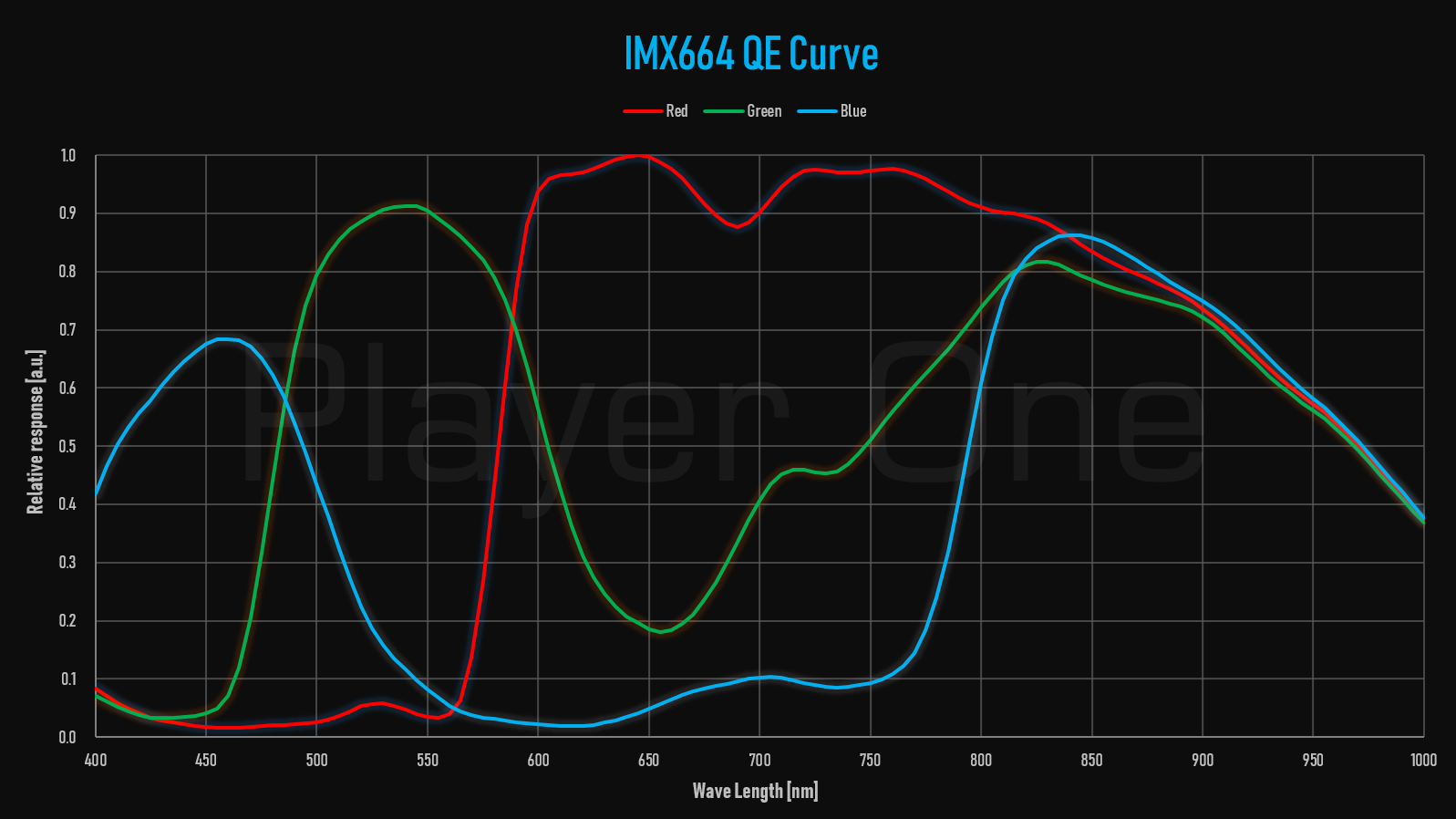

| QE Peak | ≈91% |
| Full Well | 38.5k e |
| ADC | 12 bit |
| Data Port | USB3.0/USB2.0 |
| Adapter | 1.25″ / M42X0.75 |

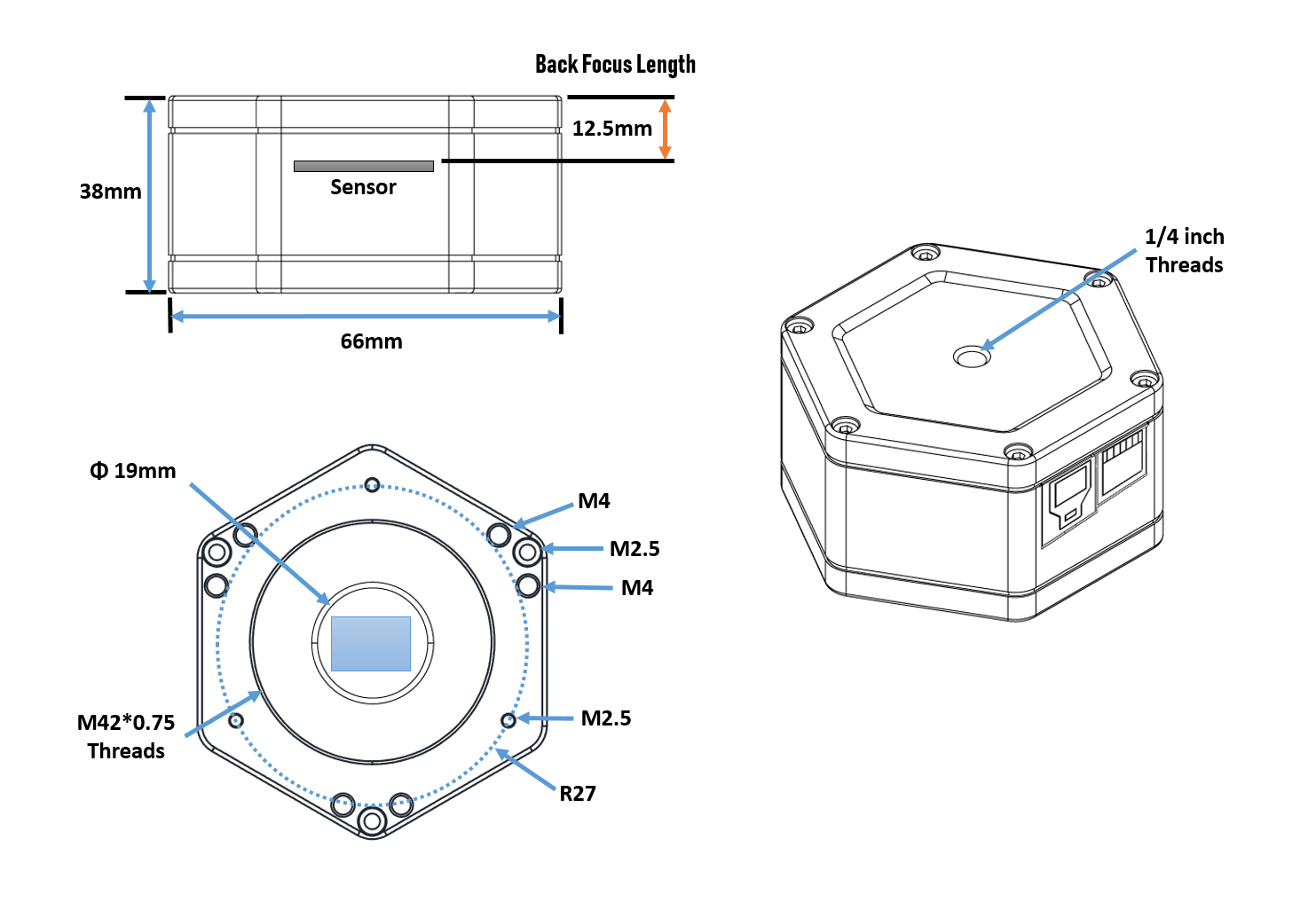

| Back Focal Length | 12.5mm |
| Protective Window | D21*1.1MM High Quality AR Plus (Anti Reflection) Multi-Layer Coating |
| Diameter | 66mm |
| Weight | 180g |
| Resolution and FPS | Under USB3.0 mode Resolution 12bit ADC 10bit ADC 2704×1540 93FPS 46.5FPS 2560×1440 105FPS 52.5FPS 1920×1080 187FPS 93FPS 1280×720 275FPS 203FPS 800×600 325FPS 240FPS 640×480 398FPS 294FPSMore resolution options could be setup in capture softewares! |
